What is this?
This is a panel-mount USB-C female connector designed to add a waterproof charging port to your DIY electronics projects or equipment enclosures. It has a wide range of applications and can be used for Type C female installations in smart product, home appliances, the automotive industry, and communication equipment, among others.
What will I get?

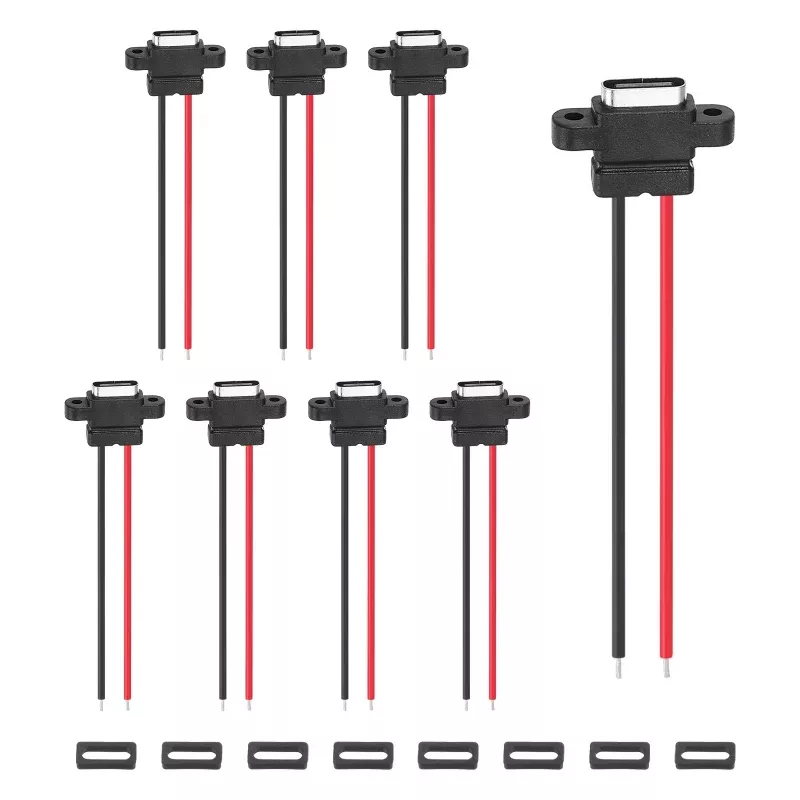

Style: Vertical Terminal Panel-Mount Type-C Female Connector
Rated Specification: 5V DC / 3A Max
Female Socket Size: 20 x 5.2 x 12.5mm / 0.79 x 0.2 x 0.49inch (L x W x H);
Length: 56mm / 2.2 inch;
In the package of: 8 Pcs x USB-C Type-C Power Connector with Waterproof Rubber Ring
Are there any advantages of the product?
Type-C pigtail bare wire is a Type-C female head, and one end is a 2-pin 2-wire bare wire. The waterproof USB-C connector provides a reliable interface for devices. Built-in flange with screw holes for solid, permanent installation onto any enclosure panel. IP-Rated Waterproof Seal, including gasket, protects against dust and water splashes when properly installed. Made with pure copper conductors, it has low resistance and fast charging. The USB-C power cable has pre-stripped and tinned ends for easy soldering and connection.
How to use it?
This extension cable is easy to use. The bare wire ends allow you to solder directly to circuit boards or connect to power supplies. provides a reliable interface for devices.
What should I notice?
This 2-pin charging port does not support data transfer or video output. Always double-check the circuit polarity before soldering to avoid damage. The red wire is positive (+) and the black wire is negative (-).
